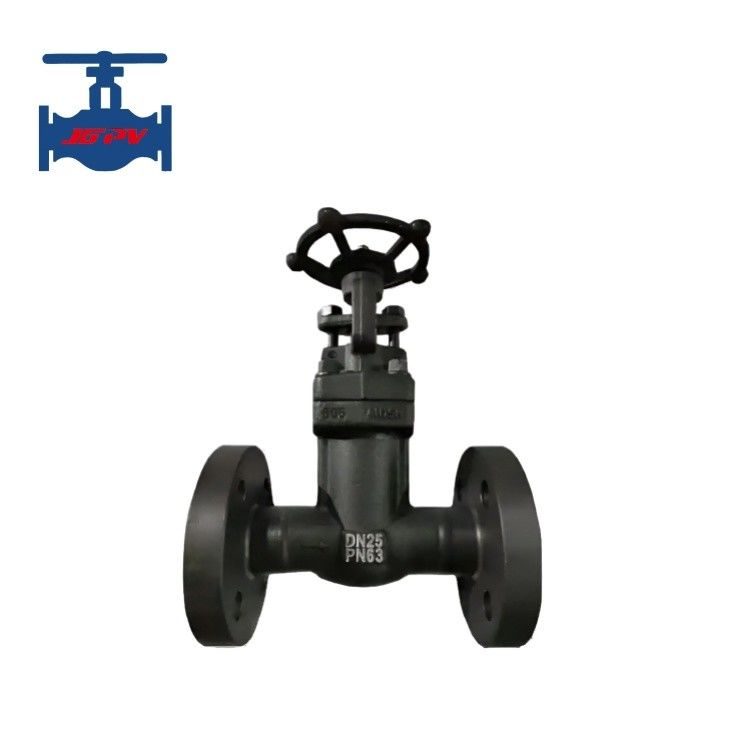

API 602 Standard Class 150 SS304 Bellow Seal A105 Forged Gate Valve

Name: API 602 Standard Class 150 SS304 Bellow Seal A105 Forged Gate Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: WZ41H-JGPV
Price: 549.90 USD
Availability: InStock

Productgegevens

Plaats van herkomst: China

Merknaam: JGPV

Modelnummer: WZ41H-JGPV

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 set

Prijs: USD99.9/pc to USD999.9/Set

Levertijd: 14 dagen

Betalingscondities: L/C, T/T, Western Union

Levering vermogen: 1000 stuks per maand

Vind de beste prijs

Productgegevens

Productbeschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                A105 gesmeed poortklep, Klasse 150 gesmeed poortklep, API 602 Standaard gesmeed poortklep


Standard of niet-standaard:	standaard	Toepassing:	Algemeen
Productkenmerken:	Industriële Klep	Doel:	Pipeline open en dicht
Vervaardigingsmiddelen:	Smederij	Grondstoffen:	A105, F11, F22, F304, F316, F321 enz.
Nominale druk:	150LB-600LB	Portgrootte:	1/2“ - 2“
teststandaard:	Sterkteproef en afdichtingsproef en klantvereiste	Kwaliteitsgarantie:	18 maanden

Standard of niet-standaard:	standaard
Toepassing:	Algemeen
Productkenmerken:	Industriële Klep
Doel:	Pipeline open en dicht
Vervaardigingsmiddelen:	Smederij
Grondstoffen:	A105, F11, F22, F304, F316, F321 enz.
Nominale druk:	150LB-600LB
Portgrootte:	1/2“ - 2“
teststandaard:	Sterkteproef en afdichtingsproef en klantvereiste
Kwaliteitsgarantie:	18 maanden

API 602 Standard Class 150 SS304 Bellow Seal A105 Forged Gate Valve

Product introduction:

Forged steel gate valve is composed of components such as valve body, valve cover, valve stem, gate plate, and sealing parts. Among them, the valve body and valve cover are made of high-quality forged steel, which has high strength and good corrosion resistance. The valve stem is made of stainless steel material, which has good corrosion resistance and wear resistance. The gate is a key component of the valve, and its sealing performance directly affects the effectiveness of the valve. The sealing structure of forged steel gate valves is usually metal sealed, which can effectively prevent medium leakage.

And the other key component of the bellow sealed gate valve is the bellow pipe, its lower end is automatically welded with the valve stem assembly, and the upper end is automatically welded with the connecting plate to form a metal barrier between the fluid medium and the atmosphere, ensuring zero leakage of the valve stem.

This special type of dual sealing design, bellows and graphite packing to ensure zero leakage, If the bellows fails, the valve stem packing will also avoid leakage and comply with international sealing standards.The valve cover comes with a grease fitting, which can directly lubricate the valve stem, nut, and shaft sleeve, however, the traditional gate valves can only add lubricating oil to the threads.

Product technical parameter:

Model	Z61H-JGPV
Pressure nominal	1500lb to 2500lb
Port size	1/2" - 2"
Sealing type	Pressure sealing sealing
Test pressure (Strength)	1.5 times of pressure nominal
Test pressure (Sealing)	1.1 times of pressure nominal
Working temperature	≤600℃
Medium application	Water, steam, oil and weak corrosive mediums
Connection	Flange, screw and weldable connections
Driven method	Hand-wheel, bevel gear and electric actuator optional
Installation range	Automation pipeline control in power, metallurgy, petrochemicals, environmental protection, energy management, fire protection systems, etc.

Product features:
