Manual Flanged Gate Valve for Water Steam Oil ISO9001 Certified

Productgegevens

Place of Origin: China

Merknaam: JGPV

Betaling en verzendvoorwaarden

Minimum Order Quantity: 1 Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Vind de beste prijs

Productgegevens

Productbeschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                flanged gate valve for water, manual gate valve ISO9001 certified, steam oil gate valve


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, steam and oil etc.	Function：:	Condensate drain
Connection::	Flange connection	Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard	Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, steam and oil etc.
Function：:	Condensate drain
Connection::	Flange connection
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	18 Months

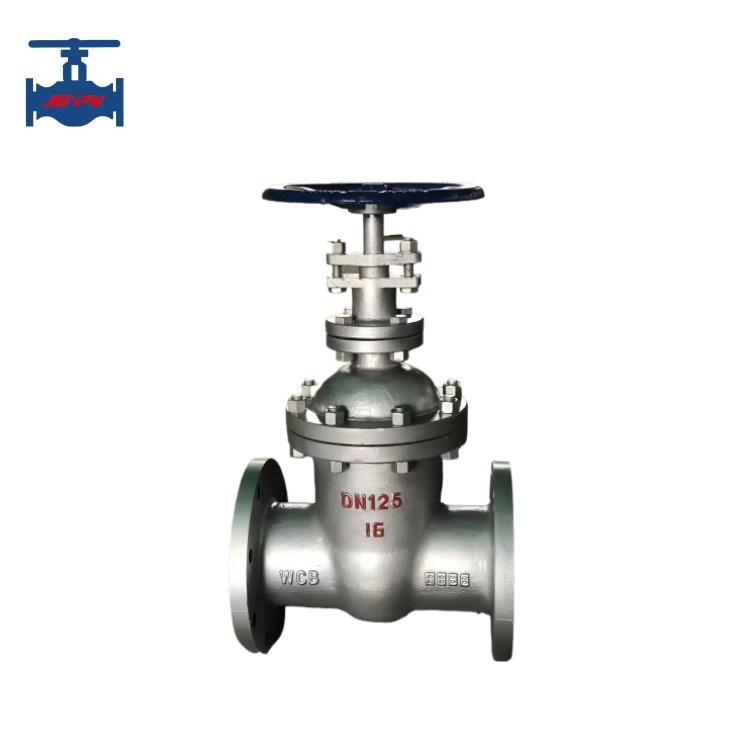

Manual Flanged Gate Valve for Water Steam Oil ISO9001 Certified

Manual Flanged Gate Valve

Product Specifications

Attribute	Value
Application	General
Certificate	ISO9001, ISO14001
Medium Type	Water, steam and oil etc.
Function	Condensate drain
Connection	Flange connection
Mounting Type	Direct Mount
Standard Or Non-Standard	Standard
Flow way	Two way
Actuation	Manual, Electric, Pneumatic, Automatic
Sealing Performance	Sealing
Working Temperature	Normal Temperature And High Temperature
Pressure Application	18 Months

Product Description

Highlight: Manual Flanged Gate Valve

Product Introduction

Gate valve is a like a gate, with the movement direction perpendicular to the direction of the fluid, and gate valve can only be fully open and closed, not adjusted or throttled. It is widely used in petrochemical, pharmaceutical, electric power and other industries.

This gate valve with non-rising stem, has two sealing faces, with bronze raw material, forming a wedge with a wedge angle varying with valve parameters, usually 50, and 2°52' when medium temperature is not high. It is made into a whole body, so called the rigid gate. It is installed in the pipeline, as a closed circuit equipment only, not allowed to adjust the flow rate and empty use.

Technical Parameters

Parameter	Value
Nominal Diameter DN (mm)	50~300
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Valve body: A216-WCB Bonnet & Disc: A216-WCB Stem1: 2Cr13 Seal: Stainless steel Packing: Oiled asbestos Hand-wheel: HT200
Working temperature	-29~425℃
Medium suitable	Water, steam and oil
Connection	Flanges connection

Product Features

Low flow resistance, valve body internal medium channel is straight, medium into a straight line flow, flow resistance is small.
Save manpower for opening and closing compared with the globe valve, because whether open or closed, the movement direction of the gate is perpendicular to the direction of the flow side of the medium.
High height and long opening and closing time. The opening and closing stroke of the gate is larger, and the drop is carried out through the screw rod.
Low water hammer phenomenon due to long shutdown time.
Two ways direction, medium can flow to both sides in any direction, easy to install.
The structural length (the distance between the two connecting ends of the shell) is small.

Product Images
